We can recommend a wide range of equipment and production machinery made mainly of FRP with superior levels of corrosion resistance, durability, heat resistance and weather resistance.
|
 |
| 1. |
High-grade corrosion resistance: Easy selection of material properties that perfectly match the relevant fluid (resource-saving). |
| 2. |
Light and tough: A specific gravity that is 1/5th lighter than steel (resource-saving). |
| 3. |
Heat-resistant, cold-resistant and stable dimensions: Specifications for continual use at between -60 degrees and +120 degrees Celsius possible. |
| 4. |
Maintenance-free |
| 5. |
An air-tight model using a sealed index system for which the seal can be easily replaced. |
| 6. |
Minimal operational torque for each handling (resource-saving). |
| 7. |
The valve controller can be selected in accordance with objectives. |
| 8. |
Standardized to allow swift deliveries and with a rational, simple design to lower costs. |
| 9. |
Standard specifications
Fluid types: Air, gas, sea water, corrosive fluids.
Fluid design pressure: Gas, soil 0.6Kg/cm3
Fluid: 2Kg/cm3
|
|
 |
|
Iron and steel/non-ferrous metal non-gas refiner
Flue-gas desulfurizer
All types of chemical plant
Production lines that handle other corrosive fluids, etc.
Please provide information on the following with your order or inquiry.
| 1. |
Type of fluid. |
| 2. |
Conditions for fluid usage (fluid density, temperature (maximum, general use), flow rate, fluid pressure (maximum, differential pressure during operations). |
| 3. |
Installation method. |
|
 |
|

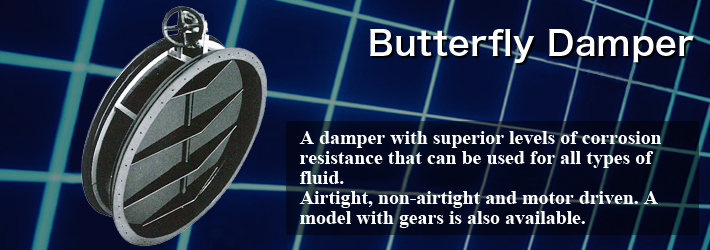

 FRP butterfly damper
Wind volume adjustment, partitioning valve, etc., dampers
| Type |
Cylindrical shape |
| Model |
KND: Non-airtight |
KSD: Standard airtight |
KHD: Completely airtight |
| Range of standard production |
200¡Á2,500mm |
200¡Á2,500mm |
200¡Á1,100mm |
| Drive method |
Manual lever, manual gears, air-driven, motor-driven |
| Type |
Square shape |
| Model |
KND: Non-airtight |
KSD: Standard airtight |
| Range of standard production |
200¡Á2,500mm |
200¡Á2,500mm |
| Drive method |
Manual lever, manual gears, air-driven, motor-driven |
* Contact us for quotations or inquiries with information not listed above (gas name, temperature, specific density, pressure, air volume, installation method, etc.)
|
 |
|
FRP tanks
Accumulation tanks and vacuum tanks for storing all types of chemical fluids.
| Type |
Circular: Vertical, Horizontal |
| Shape of tank top |
Open |
Flat |
Conic |
Panel |
| Shape of tank base |
Flat |
Conic |
Panel |
|
| Range of standard production |
¡Á60㎥¡§φ3,400×H7,000mm |
| Type |
Square |
| Shape of tank top |
Open |
Flat |
Pyramid |
| Shape of tank base |
Flat |
Conic |
|
| Range of standard production |
¡Á30㎥¡§W3,200×L3,200×H3,000mm |
* Contact us for quotations or inquiries with information not listed above (fluid name, temperature, specific density, pressure, installation method, etc.)
FRP Mixing Vessels and Mixers
Mixers for mixing and dissolving all types of chemical liquids (mixing vessels and mixers).
FRP Filters and Strainers
Sand filers, buckets, bug filer strainers.
|
 |
|
Environmental Equipment
Environmental equipment made mainly of FRP with superior levels of corrosion resistance, durability, heat resistance and weather resistance.
Non-gas processors
Corrosive toxic gas processors
Horizontal wet-process
packed-tower scrubber |
KHS series |
Processing wind volume |
5¡Á1,500㎥/min |
Vertical wet-process
packed-tower scrubber |
KVS series |
Processing wind volume |
5¡Á1,500㎥/min |
| Horizontal mist catcher |
KHM series |
Processing wind volume |
5¡Á2,000㎥/min |
| Vertical mist catcher |
KVM series |
Processing wind volume |
5¡Á2,000㎥/min |
Deodorizer
Device for processing foul corrosive gas odors
Chemical solution cleaning type
Activated carbon absorption type
Chemical solution cleaning + activated carbon absorption type
Localized ventilator
Processor including a suction and ventilation system for processing gas within a factory.
Suction/ventilation ducts, pipes
Gas processing device
Smokestack
System control
|
 |
|
|
|
