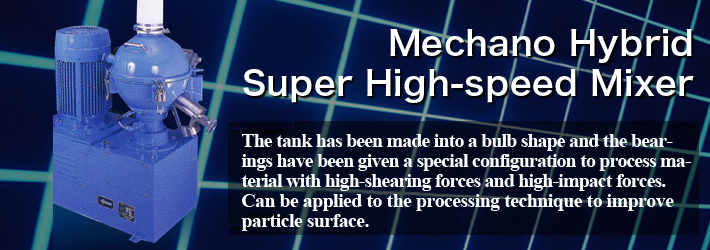

The demand for high-quality of processed products is accelerating, and the need for high-performance compounds is increasing. The Mechano Hybrid is equipped with special blades that rotate at super high speeds (100m/s under normal conditions) and a bulb-shaped tank that has the effect of convection promotion. These features provide higher levels of dispersion and reinforced surface processing compared to shearing and airflow used in conventional mechanical surface improvement units.
Model

Total Capacity [liters]

Processing Capacity [liters] Motor Capacity [kW] Extraction Valve Length (L) [mm] Width (W) [mm] Height (H) [mm] Unit Weight [kg]

Remarks

MH2 2 1 2.2 Manually operated 580 420 930 60 Inverter
MH20 20 10 15 Manually operated 1100 675 1390 300 Inverter
MH75 75 40 30 Pressure operated 1900 1000 1800 1000 Single-speed gear
MH150 175 80 55 Pressure operated 2400 1150 2000 1500 -
MH300 340 170 90 Pressure operated 3000 1400 2500 2500 -

Spheroidizing (additive processing for toner)


Material tank Air fan Extruder Grinding mill Screw feeder
Blower Bug filter Turbo mill Classifier
