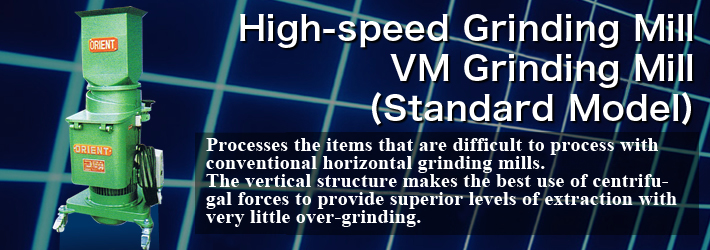

- When the material to be ground is inserted, it is drawn inside with the stand cutter and then crossed over with the spiral in the cutting chamber to produce coarse particles. It is therefore not necessary to insert it into coarse grinding mills.
- Having a vertical structure, it is very easy to detach the screen. Cleaning can also be carried out extremely easily during color changes, and all daily inspections and cleaning chores can be carried out simply by opening the hopper.
- The compact design means that it requires very little space for installation in comparison with horizontal grinding mills.
- Pipe-shaped materials and sheet-shaped materials can be ground without the use of special coarse grinders or feeders.

Model Processing Volume kg/Hr Motor Output Kw Rotor Revolutions rpm Insertion Gate Dimensions Weight kg
VM-16 60¡Á100 1.5 1500/50HZ 250¡ß280 110
VM¡Ý20 150¡Á200 3.7 1000 250¡ß335 190
VM-27 200¡Á300 3.7 750 350¡ß335 300
VM-32 250¡Á400 7.5 750 440¡ß325 450
VM-42D 500¡Á600 15.0 750 450¡ß540 950
VM-50 1500¡Á2000 30.0 640 540¡ß550 1865
VM-75 3000¡Á4000 55.0 270 800¡ß900 3900
VM-100 4000¡Á7000 75.0 205 1000¡ß1100 7400


Grinding PET bottles

Toner production lines

Conveyor belt Screw conveyor Blower
Cyclone Cushion tank Rotary valve
Dust collectors Sieve Magnetic sorter
Specific gravity sorter Static electricity eliminator
