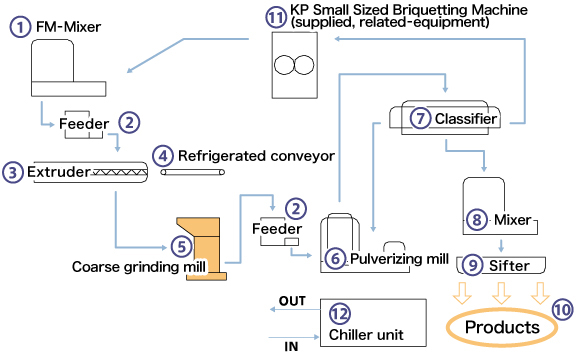

(1)
|
Pre-compound Mixer
Evenly mixes multiple materials within a short period of time.
Can be used manually or automatically, and as a dryer or moisturizer. |
| (2) |
Feeder
Feeds materials with difficult-to-handle particles accurately and in predetermined amounts. |
| (3) |
Extruder (Twin-screw)
An important item of machinery that affects the color and irregularity of toner.
The screw structure is multi-variable to cater to all needs. |
| (4) |
Refrigerated Conveyor
Instantly cools the product as it emerges from the extruder and conveys it along with flattening with rollers. |
| (5) |
Coarse Grinding Mill
The chilled material is coarse-ground into flakes to enable it to be fed into the pulverizing mill.
Although this may appear to be a simple process, it is extremely important as it affects the performance of the pulverizing mill in the next process. |
| (6) |
Pulverizing Mill
Material with a size of several millimeters is dried down to a single micron size so that it can be ground. Operating this with a classifier provides even great levels of efficiency.
Never wastes materials. |
| (7) |
Classifier (material→coarse classification→fine classification→end product)
Classifies the material that has been ground in the pulverizing mill.
Coarse particles can be returned to the grinding mill and re-ground.
This also eradicates over-ground particles that cannot be used in products. Provides sharp granule distribution that cannot be found anywhere else. |
| (8) |
Additive Process (Mixer)
The blades are rotated much faster than the pre-compounding process to ensure that the additive coats each individual particle evenly.
A mixer that can be used with special specifications. |
| (9) |
Sifter
A sifter that must be carried out before the product can be extracted from the production line.
This can be used for a wide range of products, from special oscillating motors through to ultrasonic generators. |
| (10) |
Products
Supporting all processes, from wrapping the products through to transporting them. We are able to recommend processing that is perfectly suited to the layout of the customer’s factory. |
| (11) |
KP Small Sized Briquetting Machine
Over-ground particles caught in the bug filter by the classifier are recompressed and then recycled.
Handling is very easy. It is an unprecedented compact casing that requires very little space. |
| (12) |
Chiller Unit and Other Equipment Supplied
Aiming at providing peace-of-mind, high levels of reliability, and reduction of running costs. |
