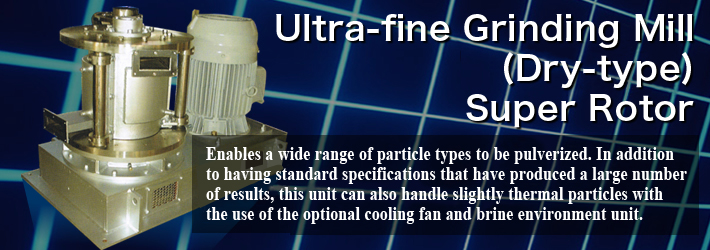

Pulverizing is performed with a hyper flow that is generated in uniquely-structured grooves developed by Nisshin Engineering Inc.
The raw material is sucked through the pulverizing mill with a blower.
The material then passes through a rotor and runner inside the mill and is pulverized with the powerful hyper flow generated by the uniquely-structured grooves. The end product is collected by a cyclone and bug filter, etc.
| Model |
SR-15/BM-15 |
SR-25/BM-25 |
SR-50/BM-75 |
SR-75/BM75 |
SR-100/BM-100 |
| External Dimensions (mm) |
580¡ß400¡ß480 |
1295¡ß835¡ß845 |
2090¡ß1160¡ß1340 |
2870¡ß1430¡ß1613 |
3300¡ß1750¡ß2200 |
| Weight (kg) |
165 |
800 |
3,00 |
5,000 |
12,000 |
| Revolutions (min-1) |
¡Á15,000 |
¡Á12,000 |
¡Á5,500 |
¡Á4,000 |
¡Á3,000 |
| Wind Volume (m3/min) |
0.5¡Á3 |
4¡Á8 |
8¡Á20 |
15¡Á30 |
30¡Á60 |
| Required Power (kW) |
3.7¡Á5.5 |
11¡Á18.5 |
30¡Á45 |
55¡Á75 |
110¡Á132 |
|
| |
 |
 |
Toner particles |
 |
|
 |
 |
