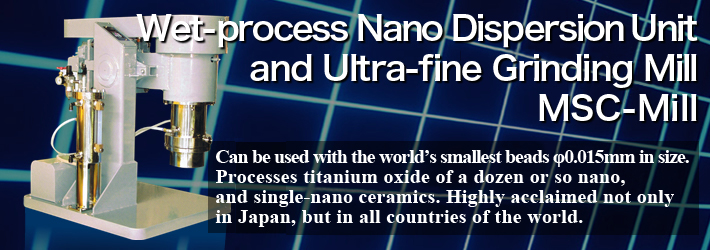

Can be used with micro-beads of between 0,015mm and 0.2mm in size. |
| ・ |
Equipped with a unique grinding chamber configuration to enable micro-beads to be used stably. |
| ・ |
Utilizes small L/D tanks and cylindrical rotors to evenly and efficiently disperse micro-beads and apply grinding forces. |
| ・ |
A simple configuration that enables it to be easily dismantled and cleaned. Also, as the grinding chamber can be rotated, maintenance from all directions is possible. |
| Model |
MSC50 |
MSC100 |
MSC150 |
MSC220 |
| Tank Capacity (L) |
0.064 |
0.32 |
1.1 |
3.1 |
| Standard Revolutions (min-1) |
3200 |
1600 |
1070 |
800 |
| Range of Revolutions (min-1) |
1000-6000 |
1000〜3000 |
650〜2000 |
500〜1500 |
| Holding tank Capacity (kW) |
0.5-1 |
3〜20 |
5〜50 |
20〜200 |
| Motor Capacity (kW) |
0.4 |
3.7 |
7.5 |
15 |
| Product Weight (kg) |
30 |
300 |
500 |
800 |
|
 |
 |
Inline Measuring Meter |
Revolutionary measuring meter that does not require a sampling.
Measurements can be taken during operations without attenuation, which enables particle diameter and zeta potential to be measured accurately. |
|
| |
 |
|
|
|
| |
|
|
|
|
|
